电池型号Model | 额定电压 (V) Nominal Voltage | 额定容量(AH) Capacity | 外型尺寸(mm) Dimension | 重量±3% (kg) Weight ±3% | 端子 Terminal | ||||
长 Length | 宽 Width | 高 Height | 总高 Total Height | 类型 Model | 位置Position | ||||
CB621W | 6 | 5 | 70 | 47 | 101 | 106 | 0.88 | T1/T2 | E |
CB653W | 6 | 13 | 151 | 50 | 95 | 101 | 2.15 | T1/T2 | C |
CB1213W | 12 | 3.5 | 134 | 67 | 60 | 67 | 1.5 | T1/T2 | B |
CB1214W | 12 | 3.0 | 141 | 32 | 103 | 109.5 | 1.41 | T1/T2 | C |
CB1221W | 12 | 5.0 | 90 | 70 | 101 | 107 | 1.76 | T1/T2 | L |
CB1223W | 12 | 5.0 | 90 | 70 | 101 | 107 | 1.95 | T1/T2 | L |
CB1224W | 12 | 6.0 | 151 | 51 | 94 | 100 | 2.28 | T1/T2 | A |
CB1236W | 12 | 8.0 | 151 | 65 | 94 | 100 | 2.7 | T1/T2 | A |
CB1250W | 12 | 13 | 151 | 98 | 94.5 | 100 | 3.97 | T1/T2 | A |
CB1280W | 12 | 20 | 181 | 76 | 167 | 167 | 6.27 | M5-R/L | D |
CB12100W | 12 | 28 | 165.5 | 125 | 175 | 175 | 9.7 | M5-L | D |
CB12103W | 12 | 25 | 166 | 175 | 125 | 125 | 9.98 | M5-L | D |
CB12135W | 12 | 33 | 195.5 | 130 | 158 | 179 | 11.94 | M6-R | C |
CB12150W | 12 | 40 | 196 | 165 | 170 | 170 | 14.5 | M5-L/R | D |
CB12210W | 12 | 55 | 229 | 138 | 207 | 228 | 18.5 | M8-L | C |
CB12260W | 12 | 70 | 350 | 166 | 174 | 174 | 22 | M6-R | D |

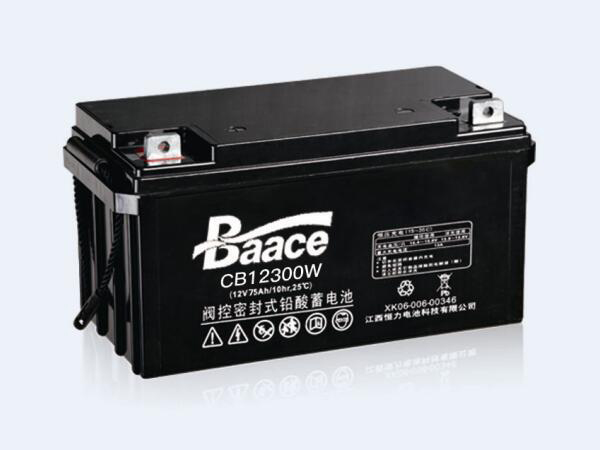

CB12300W | 12 | 75 | 259 | 168 | 208 | 227 | 25.85 | M6-L | C |

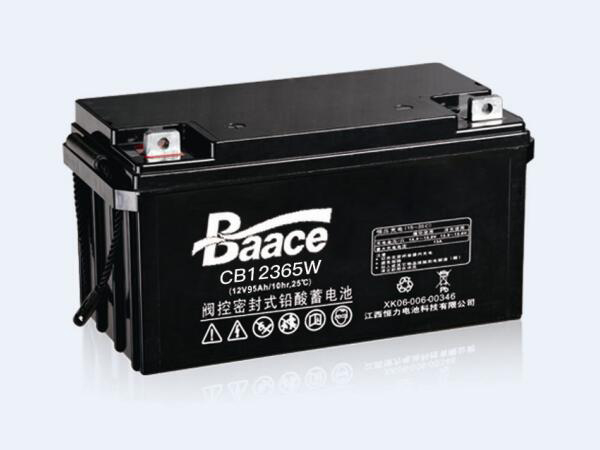

CB12365W | 12 | 90 | 304 | 168 | 208 | 229 | 30.17 | M6-L | C |
CB12400W | 12 | 100 | 329 | 174 | 214 | 218 | 34 | M6-R | C |
CB12450W | 12 | 125 | 407 | 173 | 209.5 | 234.5 | 40.2 | M8-L/R | C |
CB12475W | 12 | 135 | 345 | 172 | 275 | 278 | 46.5 | M8-R | C |
CB12520W | 12 | 140 | 345 | 172 | 275 | 278 | 47.5 | M8-R | C |
CB12550W | 12 | 145 | 345 | 172 | 275 | 278 | 49.5 | M8-R | C |
CB12600W | 12 | 150 | 345 | 172 | 275 | 278 | 50.5 | M8-R | C |
CB12630W | 12 | 155 | 345 | 172 | 275 | 278 | 53 | M8-R | C |

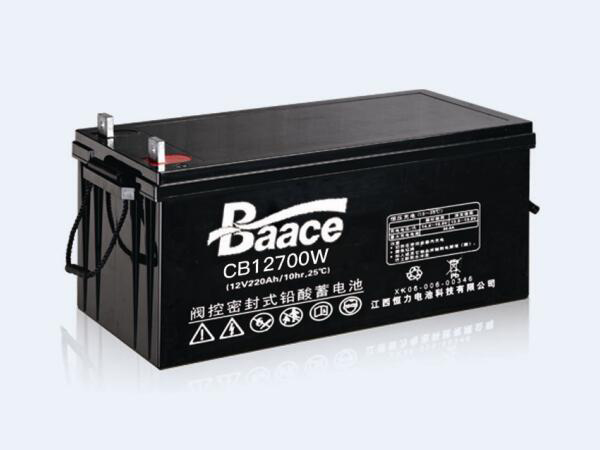

CB12700W | 12 | 220 | 522 | 240 | 218 | 245 | 67 | M8-L | B |
